Home / Front Load / Worksman Front Loader - Model U
URed12024
URed12024 URed22024 URed32024

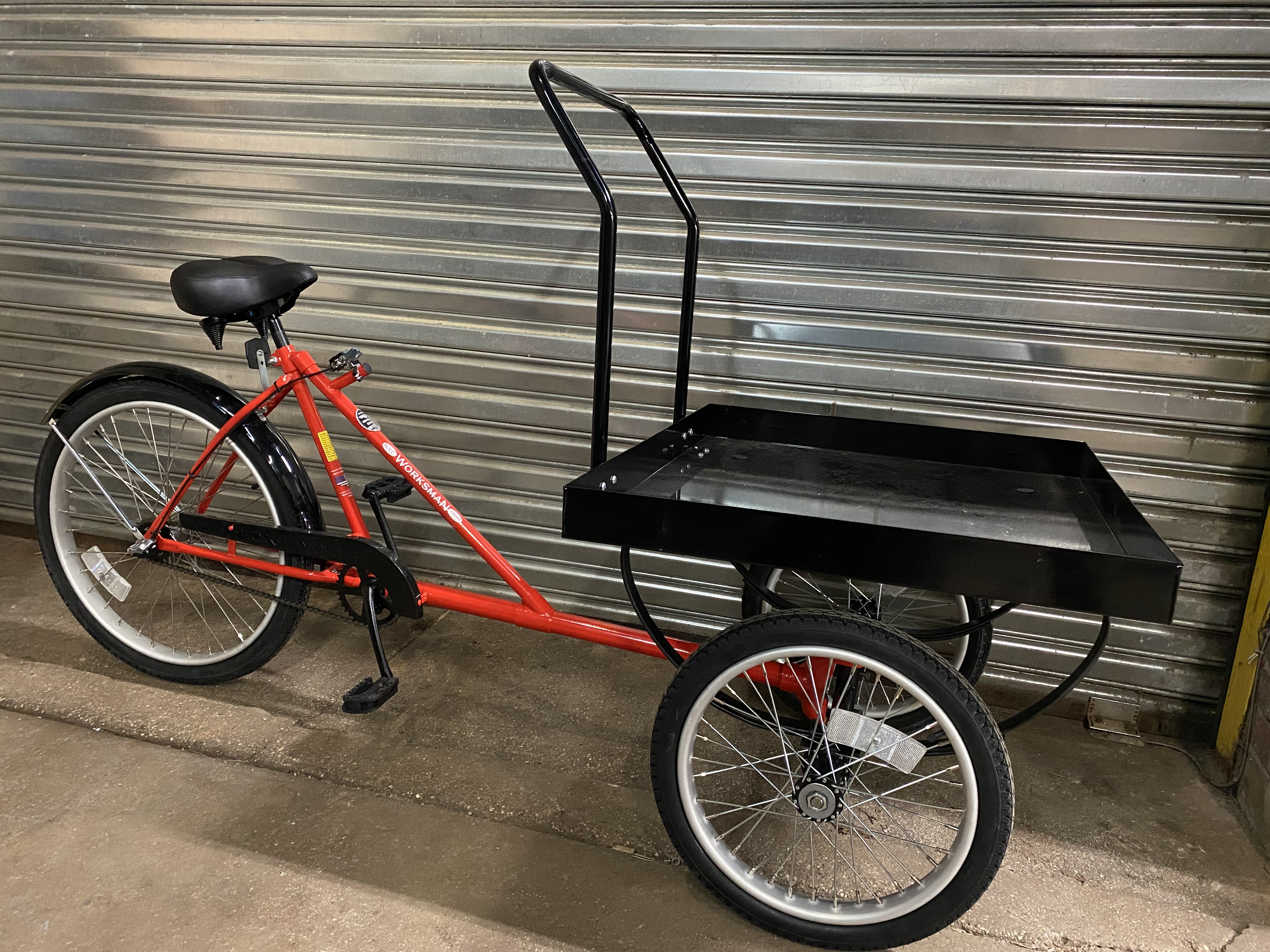

Worksman Front Loader - Model U

 $1,069.00

Worksman Industrial Front Load Tricycle with 34x30x3" steel front elevated platform. Carry what you need to on this super heavy duty Trike.

Utility Trike w/ 34x30" Platform Mounted onto High Elliptical Leaf Springs w/ 31.5" Axle. Popular at factories where items to be moved are better placed above the wheel level. Like all Worksman Front Load Tricycles, the Model U has an overall load rating exceeding 500 pounds! Remember, Worksman Industrial Tricycles are not toys!

overall Width 32"

Proudly manufactured in our Solar Powered New York City (Ozone Park) factory.

Select Your Custom Order Options Below
Quantity
  • Product Description
  • Photo Gallery
  • Reviews
  • Color Chart
  • Shipping
  • Owner's Manual
Product Name: Utility Tricycle Front Platform Tricycle Model U
Frame: Super heavy duty, fully lugged with malleable front pivot steering lug, for easy steering system Rims: Exclusive WTC Industrial Clincher Rims with rolled edge. 50% thicker material than other bicycle rims.
Spokes: 11G (.120) Heavy Duty 36/wheel 26" rear, 20" front
Rear Wheel: 26x2.125 Rear Industrial Grade with integrated Coaster Brake
Front Wheels: 20 2.125 Industrial Grade (note- if choosing Aluminum Wheel Upgrade or Solid Tire Upgrade wheels are then 26x2.125)
Tires: WTC Sup-R-Tires, Diamond Tread. Kevlar Belted Tires or Nev-R-Fail WTC Airless Technology Tires available as upgrades
Parking Brake: Optional
Rear Brake: Shimano Coaster brake. Three Speed Coaster Brake Option available.
Gearing: Standard; SIngle Speed with 36 Tooth Front Sprocket. Smaller sprocket sizes (32 and 28) available to lower great ratio. Optional Three Speed Coaster Brake
Front Axle: 1" machined steel axle with center swiveling steering lug. 31.5" Axle length. OAW is 34" (platform width)
Saddle: 12” wide thickly padded with Steel Base Pan
Crank: One Piece forged crank
Chain: 1/2"x3/16”
Pedals: 1/2" Resin Pedal with Boron Axle
Handlebar:Loop steering bar
Front Platform:steel 34x30" with 3" lip mounted upon high dual automotive type leaf spring suspension. Platform is mounted above front wheels
OAL: 84"”
OAW: 34 Carrying Capacity: 500 lb.**
Factory Location: PROUDLY MADE BY AMERICAN WORKERS IN OUR NEW CONWAY SC USA FACTORY

Many upgrades and choices are available to customize your Worksman Industrial Tricycle.

**Notes about Carrying Capacities: While other companies put unfounded inflated weight capacity figures based upon no facts, we at Worksman Cycles actually put weight capacities far less than the true capabilities of the cycles, as we take into consideration not only what the cycle will be able to hold, but what is a safe operational weight. Worksman Industrial Tricycles are simply more durable than other brands and have a 100+ year track record to prove it.

specifications subject to change without notice. Not responsible for changes or typos.

Front Load/Delivery/Low Grav
Reviews

Write a review | No reviews for this product.

Please Note: Our bikes are custom built. Shipping charges will be calculated AFTER your order is received by our staff.
You will receive an email within 48 hours to inform you of the shipping charges and overall total for your order.

CLICK HERE FOR A SHIPPING COST ESTIMATE.

Download the Owner's Manual here.
